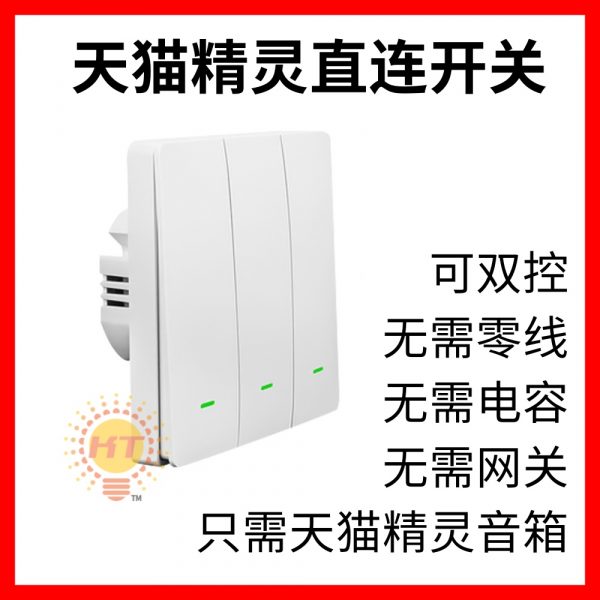

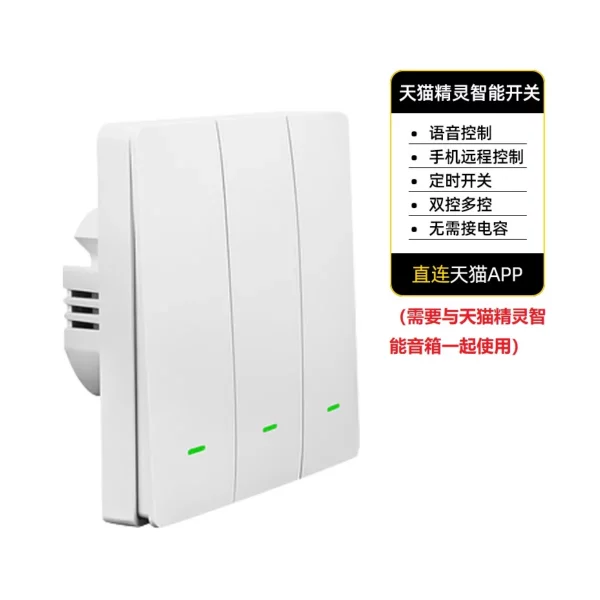

天猫精灵直连开关 Tmall Genie Mechanical Button Bluetooth Switch support 2 way No neutral No capacitor

This Tmall Genie Button Switch doesn’t need neutral at the switch and can use without capacitor, no need gateway, it also can be used for 2 way switch. Tmall genie smart speaker is required. Use with voice control via Tmall genie smart speaker and automation scene within Tmall genie ecosystem.

Working wattage: 5-200w per gang (minimum 5w is required, do not use any light with dimmer or starter, might not work well on fan)
Working voltage: 90-240v (50hz)

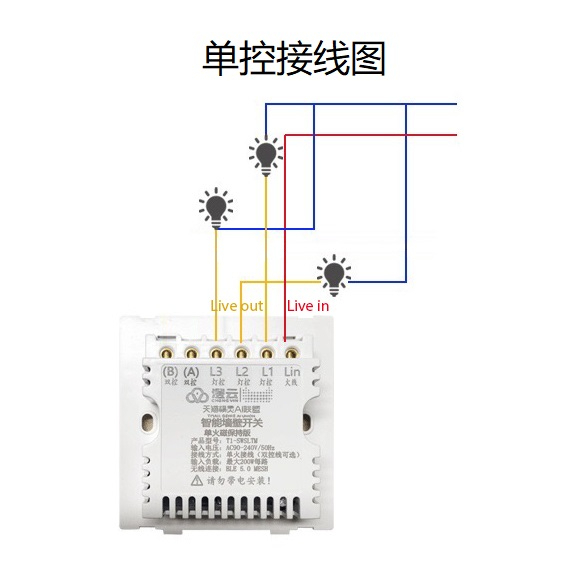

Wiring: live wire (No neutral)
Application name: Tmall Genie

Caution:
1. All outputs must be connected, an empty load will cause the switch to not operate normally.
2. If the low-power lamps might flicker, still need to install capacitor if flickering happens. Typically, lamps above 5W will not flicker. There is one capacitor included, No need to install it if no flickering.
3. Not suitable for fan, starter or adjustable lights. Must be constant current.
4. Must turn off the power during installation, and suggest getting a qualified electrician to do the installation.
5. It must be used together with Tmall Genie Speaker, otherwise it cannot be used. The distance between the two should not be too far, because this is directly connected to the smart speaker.
6. Only support Chinese language.

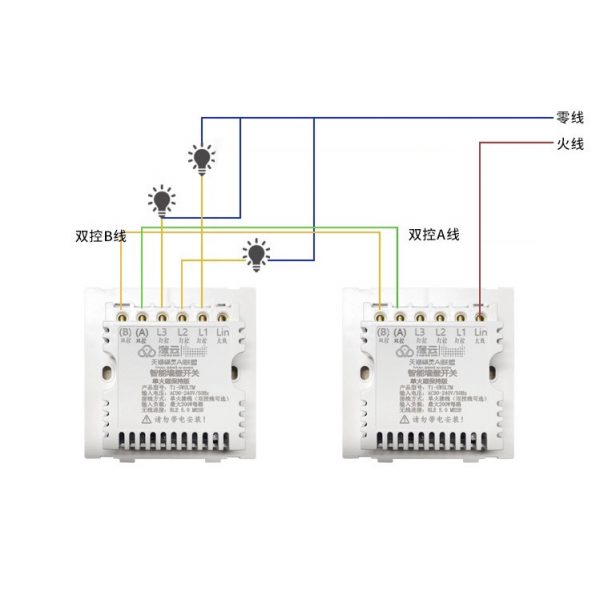

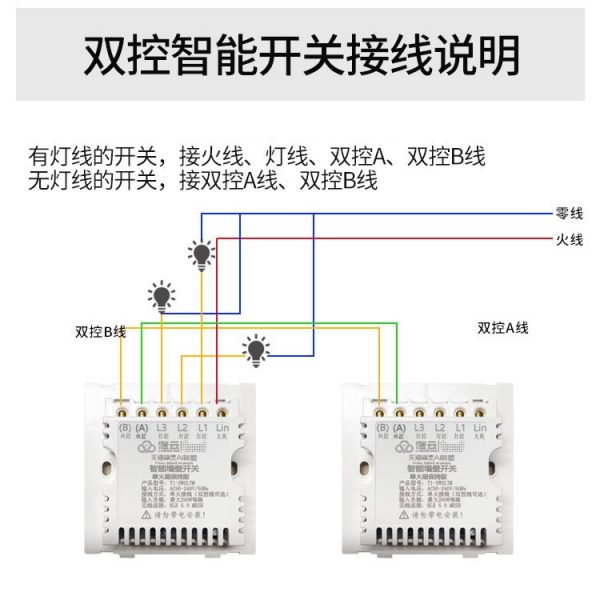

*Can be used for one-way or two-way. For two-way, need to use 2 units Tmall Genie Button switches.

这款天猫精灵按键开关无需接零线、无需电容、无需网关，也可用于双控开关，需要和天猫精灵智能音箱一起使用。通过天猫精灵智能音箱进行语音控制，天猫精灵生态系统中实现自动化场景。

工作功率：每路 5-200w（至少需要 5w，不能用在任何带调光器或启辉器的灯，风扇可能不适用）
工作电压：90-240v（50hz）
接线：火线（无需零线）
应用名称：天猫精灵

注意：
1. 每一路都要接，不可以空载，会导致开关不能正常运作
2. 低功率的灯具如果出现闪烁现象任然需要安装电容，一般5W以上灯具不会闪烁。内有1个电容，没有出现闪烁无需安装。
3. 不适用于风扇、有starter或者可调的灯。必须要是固定电流的。
4. 安装时必须断电，建议请专业电工安装
5. 必须和天猫精灵音响一起使用，不然无法使用。两者距离不可太远，因为这是直接连到智能音箱。
6. 仅支持中文

*单控和双控都能使用，双控需要购买两个天猫精灵按键开关.
